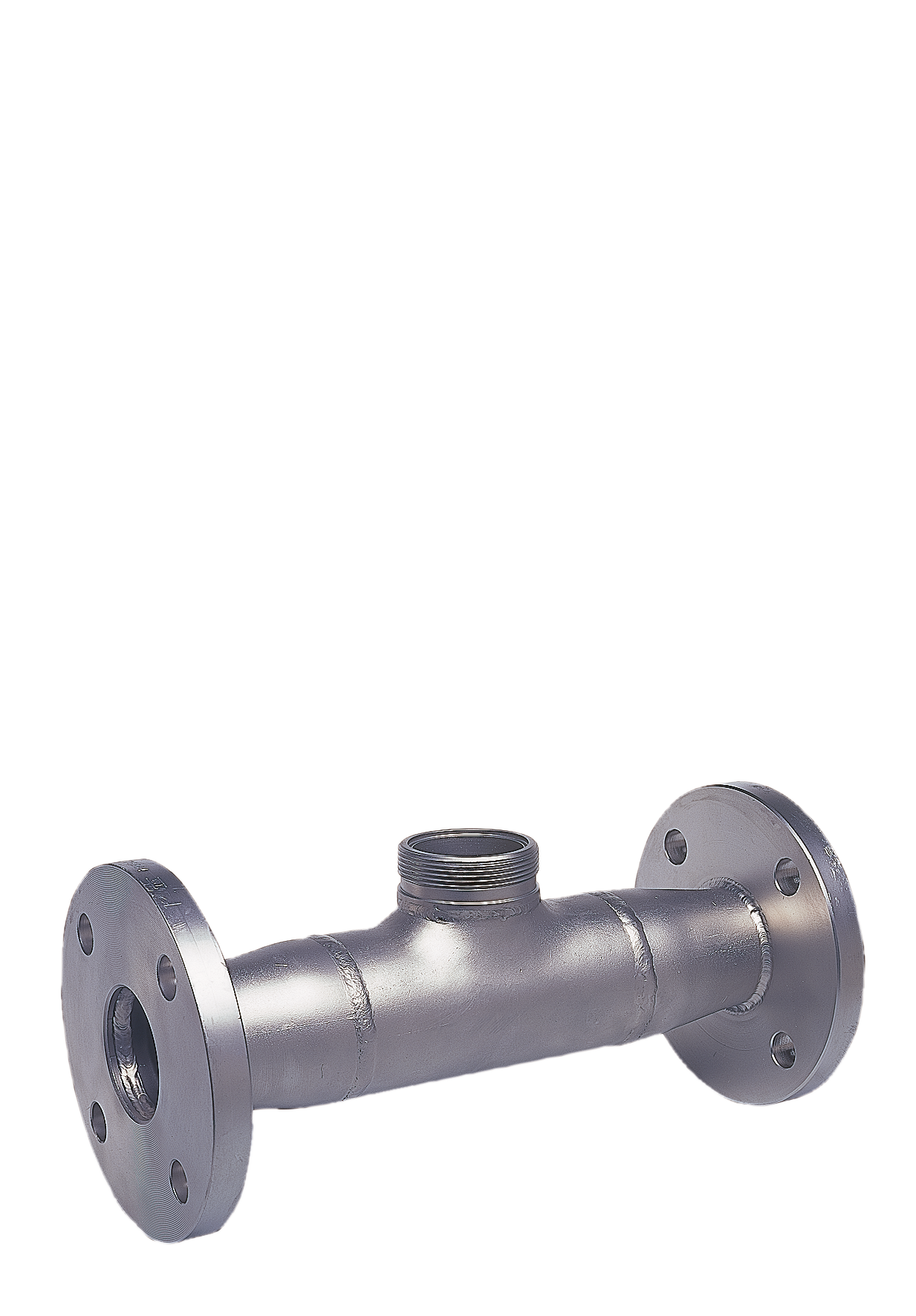

ARF240 Flow-Through Fitting
Model: ARF240
Stainless steel flow-through fitting for direct in-line installation in DN 50 pipelines, supporting multiple sensor types.
The ARF240 is a straight flow-through fitting designed for direct installation in pipelines with a DN 50 cross-section, enabling measurement in the main stream or bypass. Built from stainless steel 1.4571, it accepts a broad range of sensor adapters for pH, conductive and inductive conductivity, oxygen, and pressurized pH sensors. A tube expansion design minimizes pressure loss even when larger sensors are installed, making it well suited to high-flow, moderately polluted process media.
Specifications
- Product Type:
- Flow-Through Fitting
- Explosion protection:
- No
- Operation:
- manually
- Sensors & Adapters:
- Conductivity sensor, conductive Conductivity sensor, inductive Oxygen sensor pH sensor pH sensor, Ø12 mm, with pressurization
- Process-Wetted Materials:
- Stainless Steel 1.4571
