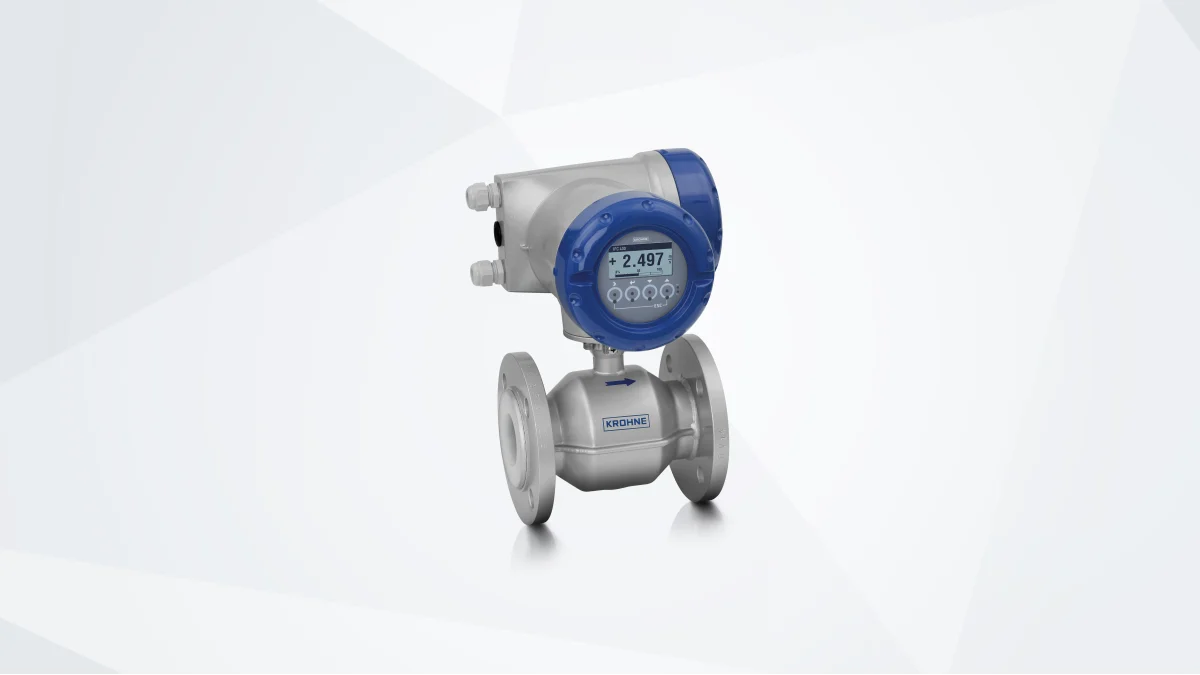

The OPTIFLUX 4400 is an electromagnetic flowmeter designed to IEC 61508 for use in safety instrumented systems up to SIL 2/3, supporting automated partial proof testing to extend intervals between full proof tests. Its Multi Phase Operation technology maintains stable, repeatable flow and conductivity readings even during gas entrainment, solids or electromagnetic disturbances. Built-in OPTICHECK diagnostics, a colour-coded NAMUR NE 107 display and wireless Bluetooth verification via the OPTICHECK Flow Mobile app simplify commissioning, monitoring and maintenance. A wide choice of liner and electrode materials makes it suitable for corrosive liquids, abrasive slurries and chemical dosing duties across compact or field-mounted configurations.

Specifications

Product type

Flowmeter

Product family name

OPTIFLUX

Product positioning

For safety instrumented systems (SIS), advanced process applications and wireless on-site verification

Product variants

OPTIFLUX 4400 C - Compact version OPTIFLUX 4400 F - Field-mounted version

Measurement principle

Electromagnetic

Contact to measured medium

Yes

Measured media

Liquids

Ambient temperature

-40...+60°C / -40...+140°F Up to +65°C / +149°F with fan

Power supply (VAC)

85...252 VAC

Power supply (VDC)

24 VDC

Process pressure

max. 40 barg/ 580 psig

Process temperature

-40…+180°C/ -40…+356°F

Liner

Perfluoroalkoxy alkane (PFA), Polytetrafluoroethylene (PTFE), Polyuretane (PUR), Hard rubber, Ethylene tetrafluoroethylene (ETFE)

Flange connections

EN (1092-1): DN2.5…2000 (larger on request) ASME (B 16.5): ⅒…80" (larger on request) JIS (B 2220): 2.5…1000A

Pressure ratings

PN40 / ASME Cl 600 up to ASME Cl2500 (fully rated) on request

Certificates/Approvals Ex

ATEX, IECEx, NEPSI

Certificates/Approvals Safety

SIL 2/3

NAMUR compliance

NE 107, NE 21, NE 43, NE 53, NE 131

Analogue outputs

4…20 mA

Discrete outputs

Pulse, Frequency, Status
