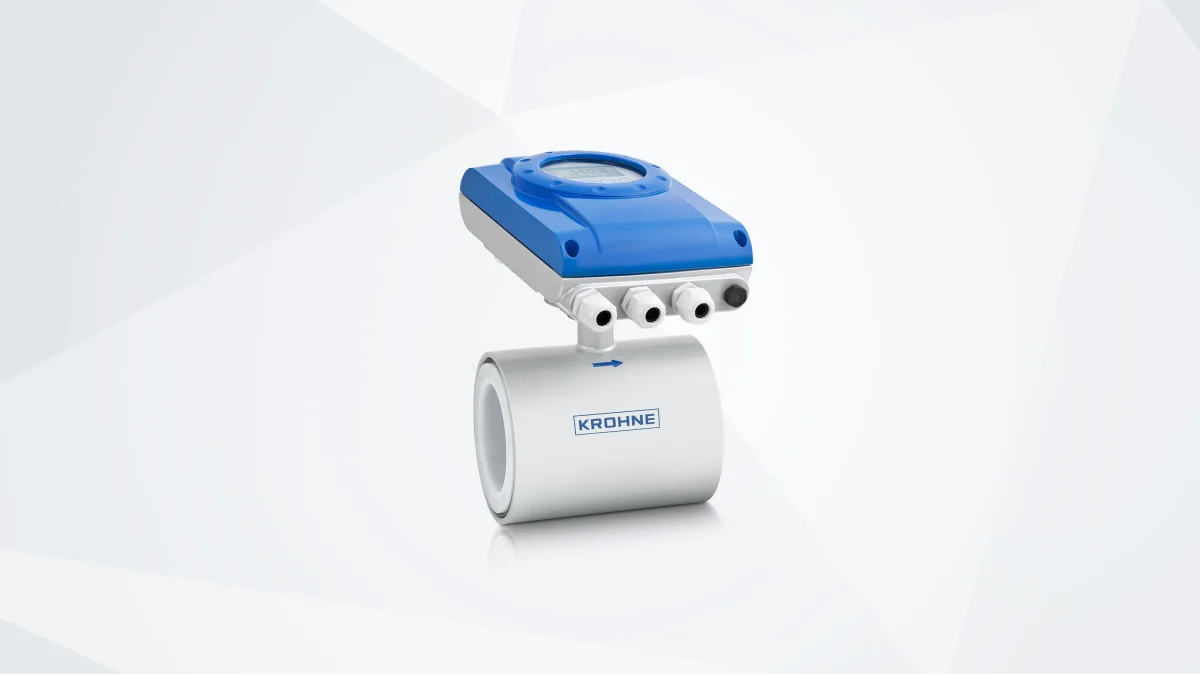

OPTIFLUX 1050
Cost-effective electromagnetic flowmeter for basic flow measurement of conductive liquids in a compact wafer-style design.
Photo 1 of 2
The OPTIFLUX 1050 is an economical electromagnetic flowmeter designed for straightforward applications with conductive liquids (≥5 μS/cm) containing up to 10% solids. Its lightweight wafer-style design saves installation space, while extra isolation of the electronics allows reliable operation even in areas with extreme humidity. Ideal for water, wastewater, agriculture, firefighting and mobile applications where extensive diagnostics or wide communication options are not essential.
Specifications
- Conductivity Range
- ≥5 μS/cm
- Max Process Temperature
- +120°C / +248°F
- Nominal Diameter
- DN10…150 / ⅜…6"
- Pressure Rating
- Max. PN40 / ASME Cl 300
- Design
- Wafer-style
- Output Signals
- 4…20 mA, pulse, frequency, status, HART®, Modbus
- Accuracy
- ±0.5% or ±1 mm/s of measured value (MV)
- Liner Material
- Reinforced PFA
- Solid Content Tolerance
- Up to 10%
