OPTIMASS 1400

⤢ Enlarge photo

Photo 1 of 2

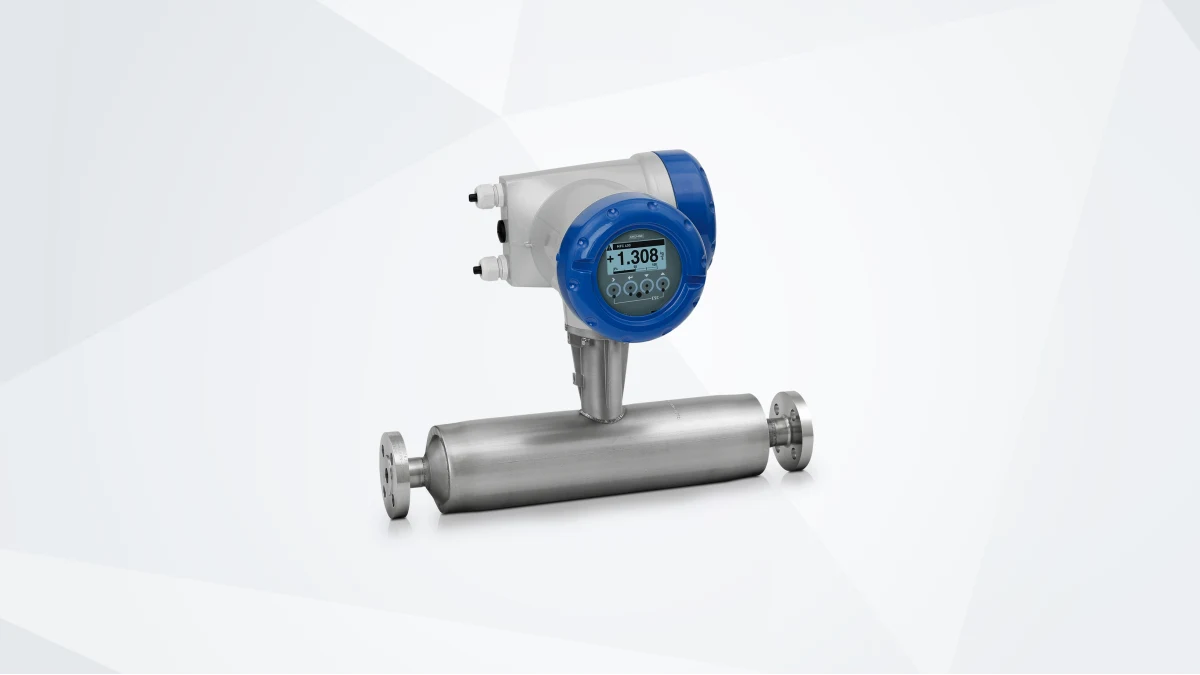

The OPTIMASS 1400 is a twin straight tube Coriolis mass flowmeter designed for reliable performance across a broad range of liquid and gas applications, including processes with entrained gas thanks to its Entrained Gas Management (EGM) function. It delivers high-accuracy mass, density and volume flow measurement with integrated temperature sensing and extensive diagnostics, while supporting a wide choice of digital communication protocols including HART, FOUNDATION Fieldbus, PROFIBUS, PROFINET, Modbus and EtherNet/IP. With hygienic, marine and hazardous-area certifications available, it suits both standard industrial installations and specialized sectors requiring validated hardware.

Specifications

Product type

Flowmeter

Product family name

OPTIMASS

Product positioning

For universal applications and process control

Measurement principle

Coriolis

Measured media

Liquids, Gases

Process pressure

max. 100 barg/ 1450 psig

Process temperature

-40…+130°C/ -40…+266°F

Measuring tube

Duplex stainless steel (1.4462/318)

Flange connections

EN (1092-1): DN15…100 ASME (B 16.5): ½…4" JIS (B 2220): 15…80A

Certificates/Approvals Ex

ATEX, IECEx, NEPSI, EAC Ex, cFMus, INMETRO, KCs, UKEX

Certificates/Approvals Hygienic

FDA, 3A, EHEDG, EC 1935/2004

Certificates/Approvals Marine

ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS

Certificates/Approvals Nuclear

Nuclear qualification on request (e.g. acc. to ASME III, RCC-M/E, etc.)

Certificates/Approvals Others

NACE

Analogue outputs

4…20 mA

Discrete outputs

Limit switches, Pulse, Frequency, Status

Digital outputs

FOUNDATION™ Fieldbus, HART ® , Profibus-PA, Profibus-DP, Modbus RTU, EtherNet/IP™, PROFINET, Bluetooth ® , PROFINET (Ethernet-APL)
