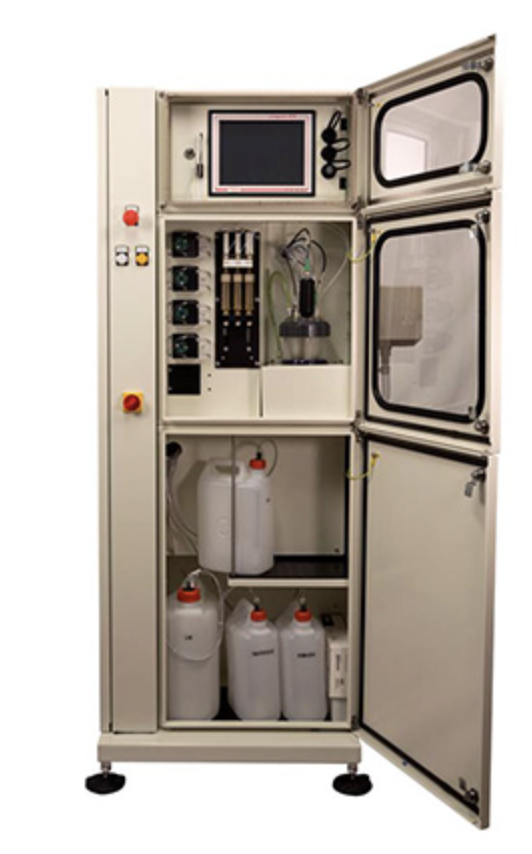

AT05

The Maselli AT05 brings laboratory-standard titration into the process environment, managing up to six sample lines plus a manual bowl from a single sealed unit. It automatically samples, titrates and analyzes product for pH, redox and conductivity, while running self-calibration cycles, configurable alarms and full data logging without operator intervention. A central control unit oversees dosing of conditioning reagents and interfaces with external systems for programming, data transmission and printing, making it ideal for continuous quality control across diverse process lines.

Specifications

Measurements Limits:

pH Measurement:0…14 pH ±0.1 pH Redox Measurement: 0…+2500 mV Conductivity Measurement: 0…100mS

Accuracy:

±800 mg/l-O2 in the range 0…100.000 mg/l-O2 or equiv-alent COD

Product temperature:

0…100 °C (32…212 °F)

Line Pressure:

Max 6 bar (87 psi) at 20 °C (68 °F)

Number of Lines:

6 lines + manual bowl

Quantity of Product:

1…80 cc

Quantity of Product Sampled:

~500 cc
