Klay Series 2000: robust flush-diaphragm pressure transmitter, 0.1–100 bar, ATEX/IECEx certified, 4–20 mA output with optional HART.

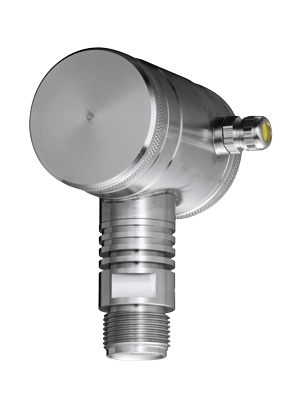

Photo 1 of 3

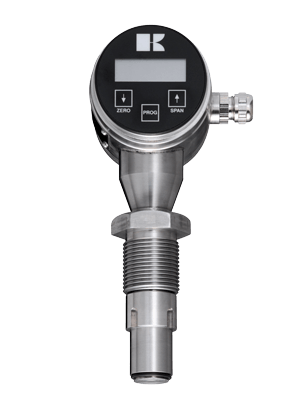

The Klay 2000 is an intelligent pressure transmitter engineered for demanding process applications in chemical, pulp, paper, and marine industries. It features a flush diaphragm design in AISI 316L stainless steel, delivers 0.1% accuracy across a 10:1 turndown ratio, and operates reliably from –20 °C to +80 °C. With integral push-button setup, ATEX/IECEx explosion certification, SIL2 functional safety, and optional HART protocol, this transmitter combines precision instrumentation with compliance for hazardous-area deployment across your operations.
Specifications
- Measuring range min. max.
- 0,1…100 bar, optie 1000 bar
- Process temperature
- -20 °C…+80 °C
- Accuracy
- 0,1 % of adjusted span
- Process connections
- 1” BSP and pulp- and paper connections with flush diaphragm, all current threaded connections
- Turn down
- 10:1
- Output
- 4-20 mA 2-wire, option HART protocol
- Adjustment
- With 3 push buttons and display, without test pressure or with HART
- Power supply
- 12 - 36 Vdc ( Ex: 12 - 26,5 Vdc)
- Protection
- IP66 (option IP68)
- Ambient temperature
- -20 °C...+70 °C
- Diaphragm material
- AISI 316L, option Hastelloy C or Gold plated
- Wetted parts
- AISI 316L
- Electronics housing
- AISI 304, option AISI 316
- Certificates/approvals
- Explosion safety : ATEX and IECEx Ex-nA, Ex-ia, Ex-ib and Ex-ec, EAC Ex-ia Marine approvals : Lloyd's, DNV, BV, CCS, ABS, Functional safety : SIL2
