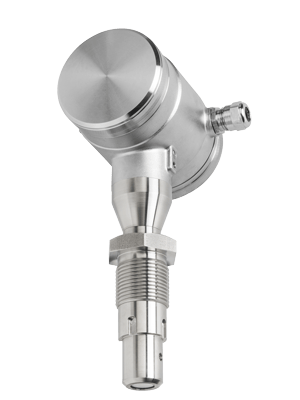

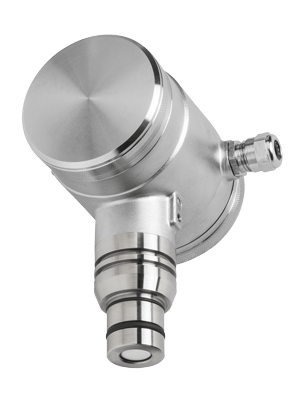

3000
Intelligent ceramic pressure transmitter with 0.2% accuracy, HART-ready, and robust IP66 protection for demanding industrial environments.
Photo 1 of 3
The Klay Instruments Model 3000 delivers precise pressure measurement across 0.1–50 bar with ceramic sensor technology, achieving 0.2% accuracy (0.1% option available). Field-configurable via three push buttons and integral display, it supports 4-20 mA output with optional HART digital communication for real-time diagnostics and remote calibration. Constructed from AISI 316L wetted parts and rated IP66/IP68, this transmitter operates reliably from -20°C to +80°C process temperature while accepting 12–36 Vdc power, making it ideal for pulp, paper, and general industrial process control.
Specifications
- Measuring range min. max.
- 0,1…50 bar
- Process temperature
- -20 °C…+80 °C
- Accuracy
- 0,2 % of adjusted span, option 0,1 %
- Process connections
- 1” BSP / NPT and pulp- and paper connections
- Turn down
- 10:1
- Output
- 4-20 mA 2-wire, option HART protocol
- Adjustment
- With 3 push buttons and display, without test pressure or with HART
- Power supply
- 12 - 36 Vdc
- Protection
- IP66 (option IP68)
- Ambient temperature
- -20 °C… +70 °C
- Sensor material
- Ceramic (AI 2 0 3 ) 99,9 %
- Other wetted parts
- AISI 316L, option Hastelloy C
- Electronics housing
- AISI 304, option AISI 316
