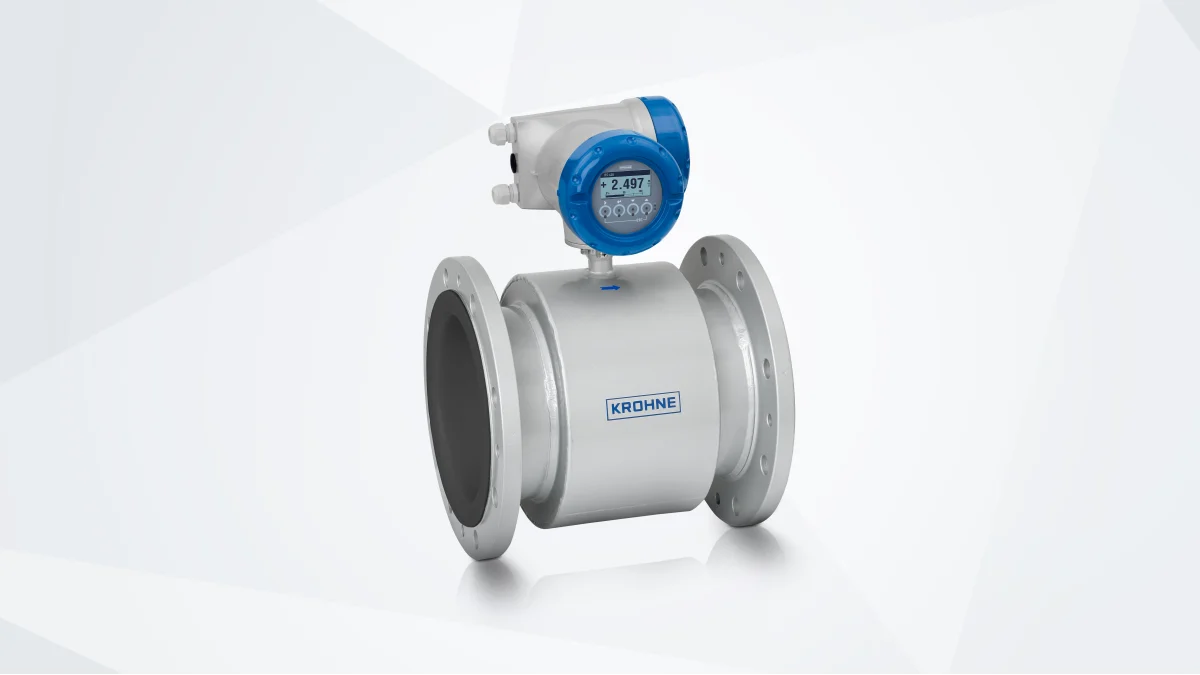

OPTIFLUX 2400
High-performance electromagnetic flowmeter for water and wastewater with built-in diagnostics and wireless Bluetooth verification.
Photo 1 of 2
The OPTIFLUX 2400 is an electromagnetic flowmeter purpose-built for demanding water and wastewater applications, combining high accuracy with integrated conductivity measurement for early detection of water quality issues and empty pipe conditions. Its Multi Phase Operation (MPO) technology ensures stable, repeatable readings even under gas entrainment, solids or electromagnetic disturbances that challenge conventional meters. Built-in OPTICHECK diagnostics and Bluetooth connectivity via the OPTICHECK Flow Mobile app allow wireless parameterisation, monitoring and on-site verification without opening the converter housing. Available in compact and field-mount versions with a choice of liner materials, it suits large-diameter pipelines and holds a wide range of potable water and hazardous area approvals.
Specifications
- Product type
- Flowmeter
- Product positioning
- For advanced water and wastewater applications and wireless on-site verification
- Product variants
- OPTIFLUX 2400 C - Compact version OPTIFLUX 2400 F - Field-mounted version
- Measurement principle
- Electromagnetic
- Measured media
- Liquids
- Process pressure
- max. 40 barg/580 psig
- Process temperature
- -5…+90°C/+23…+194°F
- Flange connections
- EN (1092-1): DN25…3000 ASME (B 16.5): 1…120" JIS (B 2220): 25…1000A
- Certificates/Approvals Ex
- ATEX, IECEx, NEPSI
- Certificates/Approvals Potable Water
- DVGW, NSF, TZW, KTW, WRAS, KIWA, ACS
- NAMUR compliance
- NE 107, NE 21, NE 43, NE 53, NE 131
- Analogue outputs
- up to 3 x 4…20 mA
- Discrete outputs
- Limit switches, Pulse, Frequency, Status
- Digital outputs
- HART®, Bluetooth®
