Krohne Flow Meter
OPTIFLUX 4050
Electromagnetic flowmeter with chemically resistant liners for basic measurement of abrasive and aggressive liquids.

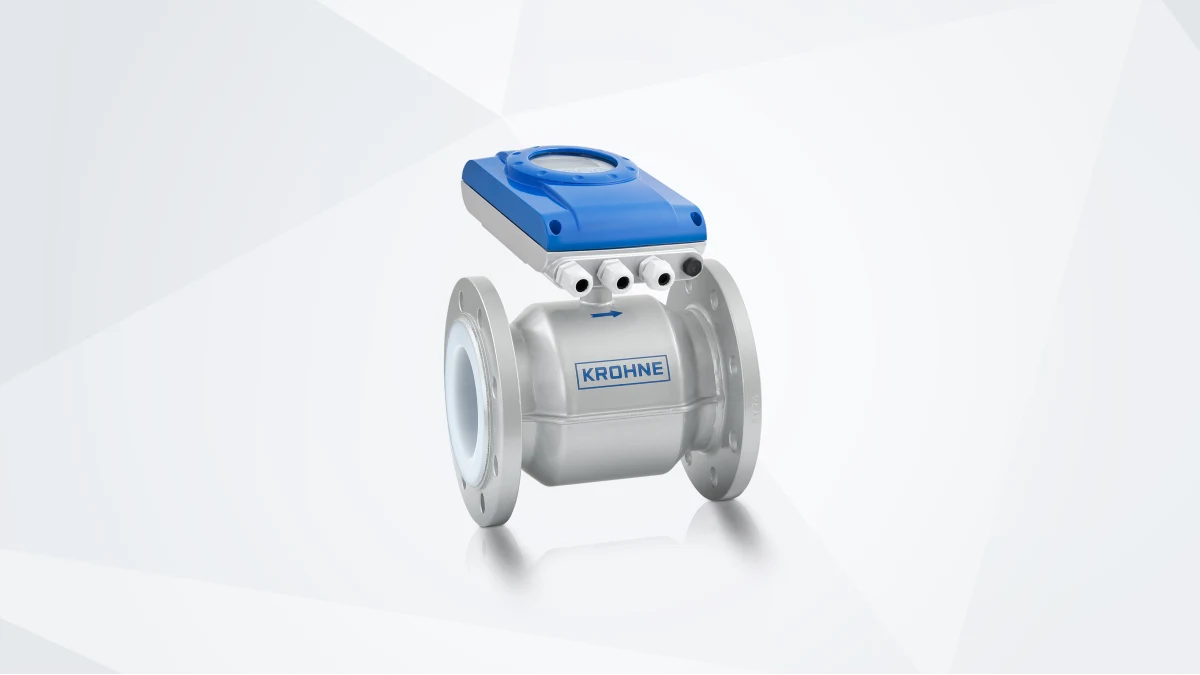

Photo 1 of 2
The OPTIFLUX 4050 is a reliable electromagnetic flowmeter designed for cost-effective measurement of abrasive and aggressive liquids in non-hazardous areas. Its selection of chemically resistant liner materials, combined with extra electronics isolation, makes it well suited to humid or flood-prone environments. With a full bore design free of moving parts, it delivers wear-free, low-maintenance operation with standard diagnostics and communication options.
Specifications
- Product type
- Flowmeter
- Product family name
- OPTIFLUX
- Product positioning
- For basic applications with abrasive and aggressive liquids
- Measurement principle
- Electromagnetic
- Measured media
- Liquids
- Process pressure
- max. 40 barg/ 580 psig
- Process temperature
- -40…+180°C/ -40…+356°F
- Liner
- Perfluoroalkoxy alkane (PFA), Polytetrafluoroethylene (PTFE), Polyuretane (PUR), Hard rubber, Ethylene tetrafluoroethylene (ETFE), Soft rubber
- Flange connections
- EN (1092-1): DN2.5…1200 ASME (B 16.5): ⅒…48" JIS (B 2220): 2.5…1000A
- Certificates/Approvals Hygienic
- FDA
- Certificates/Approvals Marine
- ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS
- Analogue outputs
- 4…20 mA
- Discrete outputs
- Pulse, Frequency, Status
- Digital outputs
- HART ® , Modbus RTU
