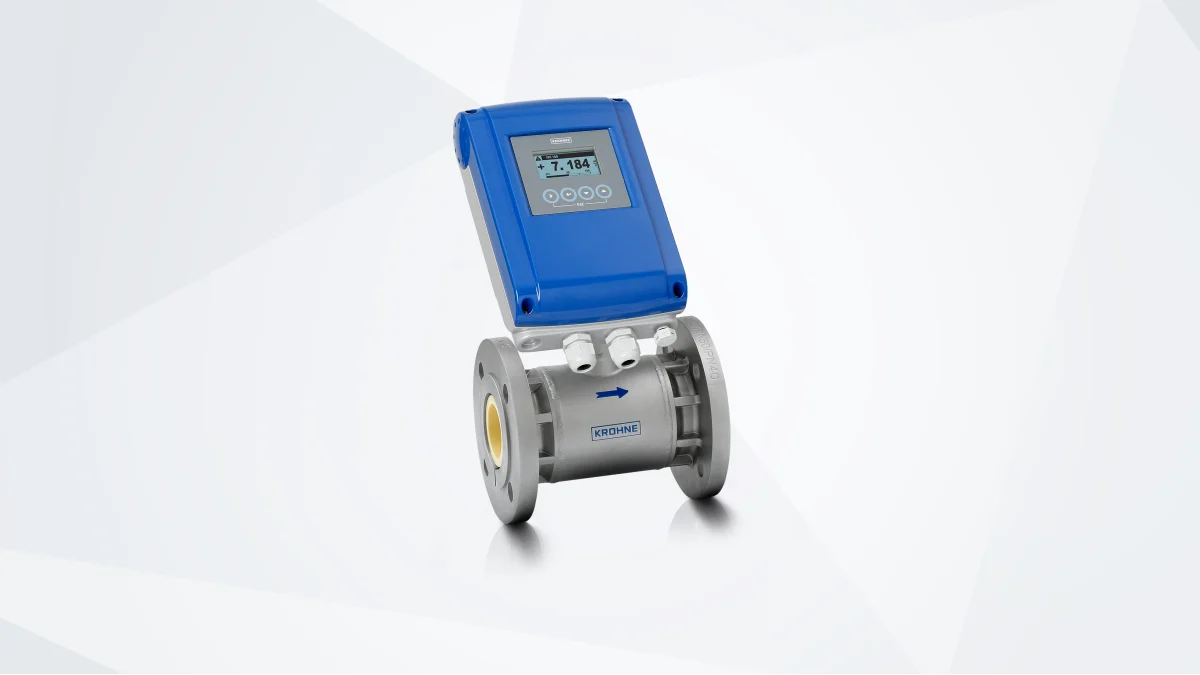

OPTIFLUX 5100
Ceramic-tube electromagnetic flowmeter built to handle aggressive and abrasive liquids in tough process conditions.
Photo 1 of 2
The OPTIFLUX 5100 is an electromagnetic flowmeter featuring a chemically resistant ceramic measuring tube, purpose-built for liquids with solid content up to 10% and process temperatures up to +180°C/+356°F. Its vacuum-resistant ceramic sensor and fused Cermet or platinum electrodes deliver reliable performance against corrosion and thermal shock, while a wide 1000:1 turndown ratio supports accurate bi-directional flow measurement. Available in flange or sandwich (wafer) configurations, it offers flexible installation for demanding chemical, mining and process industry applications.
Specifications
- Product type
- Flowmeter
- Product family name
- OPTIFLUX
- Product positioning
- For demanding applications with aggressive and abrasive fluids
- Measurement principle
- Electromagnetic
- Measured media
- Liquids
- Process pressure
- max. 40 barg/580 psig
- Process temperature
- -40…+180°C/-40…+356°F
- Measuring tube
- Ceramic (ZrO2 or Al2O3)
- Flange connections
- EN (1092-1): DN15…300 ASME (B 16.5): ½...12"
- Other connections
- Sandwich (wafer) connection: DN2.5...100 ⅒...4"
- Certificates/Approvals Hygienic
- FDA, EC 1935/2004, EC2023/2006
- Certificates/Approvals Marine
- ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS
- Analogue outputs
- 4…20 mA
- Discrete outputs
- Pulse, Frequency, Status
- Digital outputs
- HART®
